Model No.: XBJGHY-160100LD

Independent Dual Heads Laser Cutting Machine for Leather

Send email to us Download as PDF

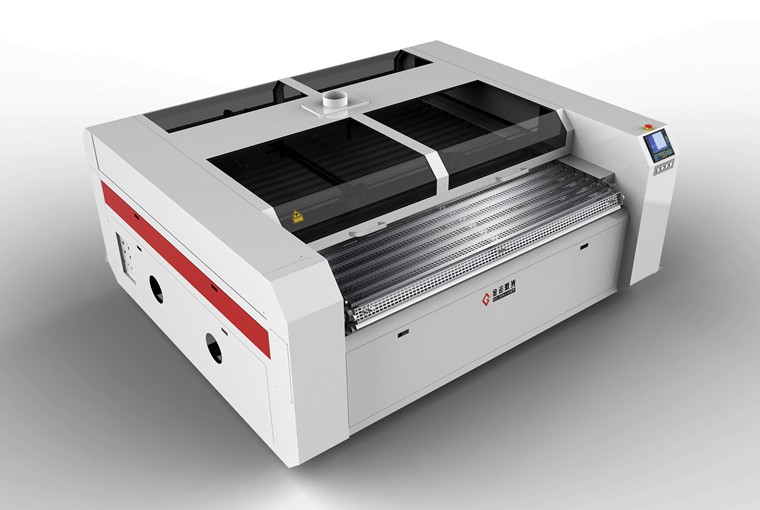

Independent Dual Head Laser Cutting Machine

Suitable for leather, cloth, micro fiber cutting in footwear, bags and gloves productionn

Features of the digital dual head leather laser cutting machine

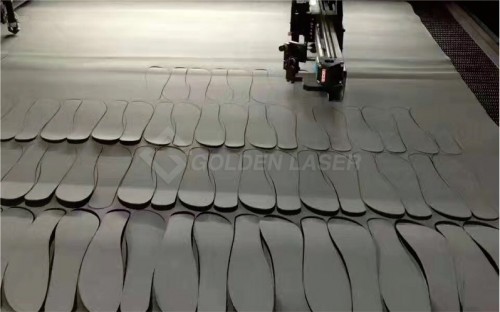

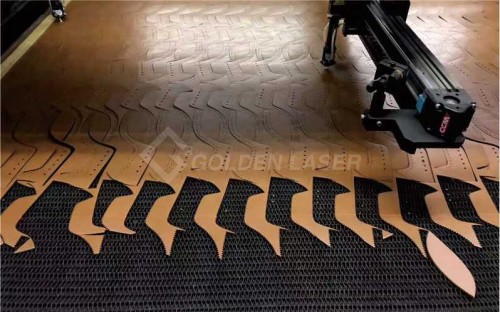

Two laser heads that work independently of each other can cut different graphics simultaneously. A variety of processing (cutting, punching, scribing, etc.) can be finished at one time. Precision up to 0.1mm. High efficiency.

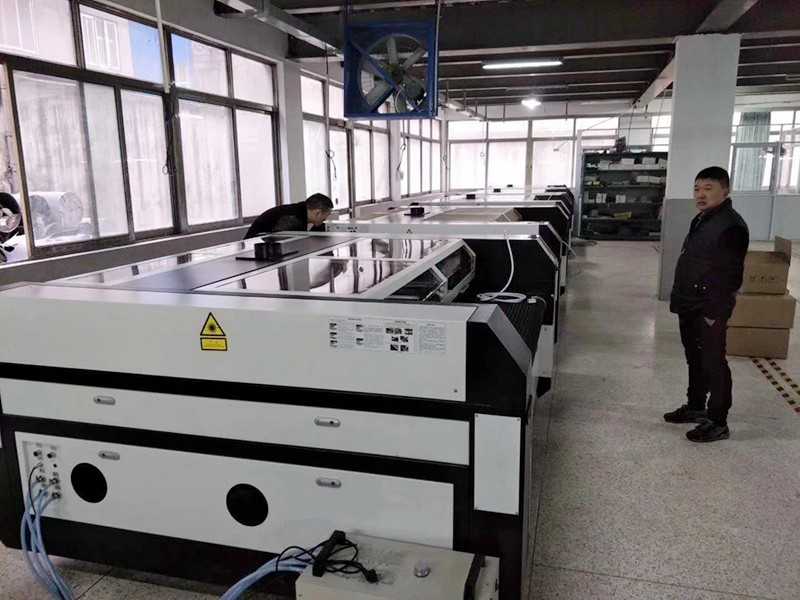

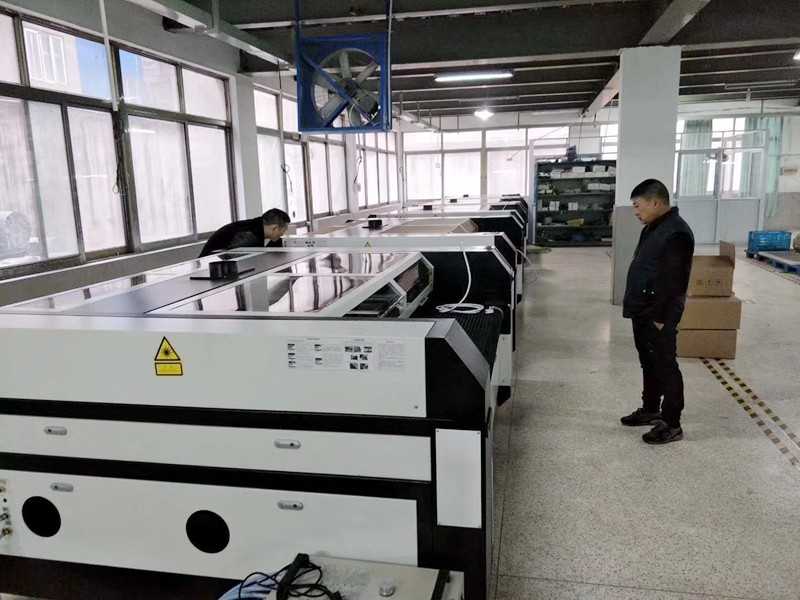

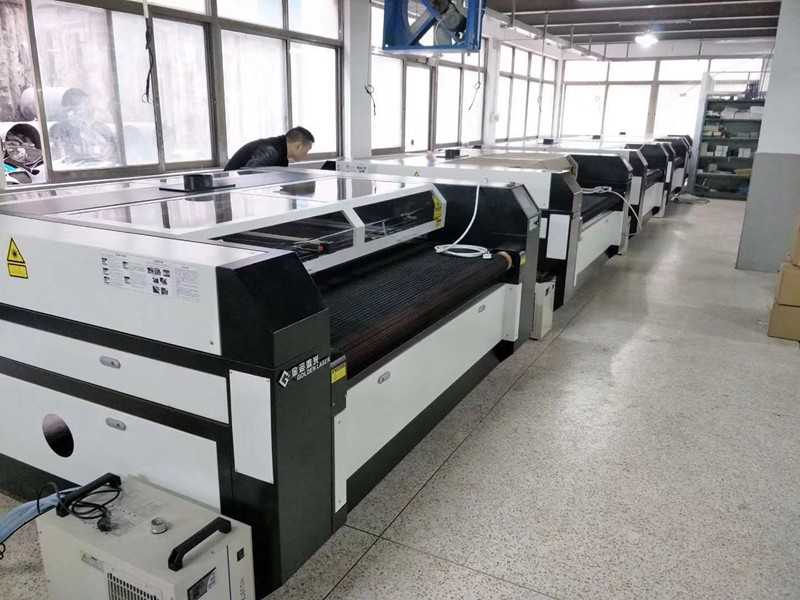

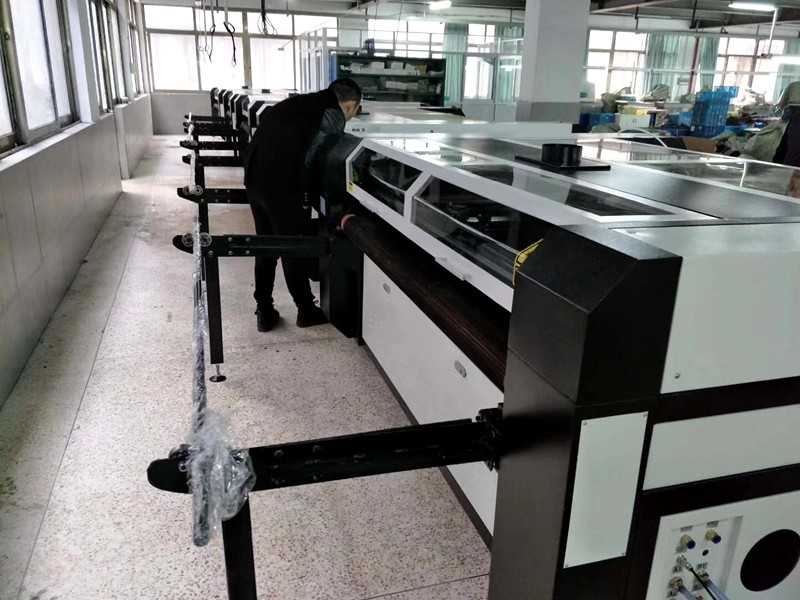

Fully imported servo control system and motion kit. Machine performance with strong stability. A large number of the laser machines have been installed in customers’ factories for mass production.

Thanks to the advanced Golden Laser original nesting software, a variety of different sizes of graphics can be fully automatic mixed nesting. The nesting effect is more compact so as to maximize the utilization of materials.

Operation is easy and simple. Nesting on PC and load cutting file to laser machine to cut immediately.

Technical specifications of the CO2 laser cutting machine

Model NO.	XBJGHY-160100LD
Laser type	CO₂DC glass laser tube
Laser power	150W×2
Working area	1600mm×1000mm (63”×39.3”)
Working table	Vacuum conveyor working table
Moving system	Servo motor
Supported graphics formats	PLT, DXF, AI, BMP, DST, etc.
Power supply	AC220V±5% 50/60Hz
