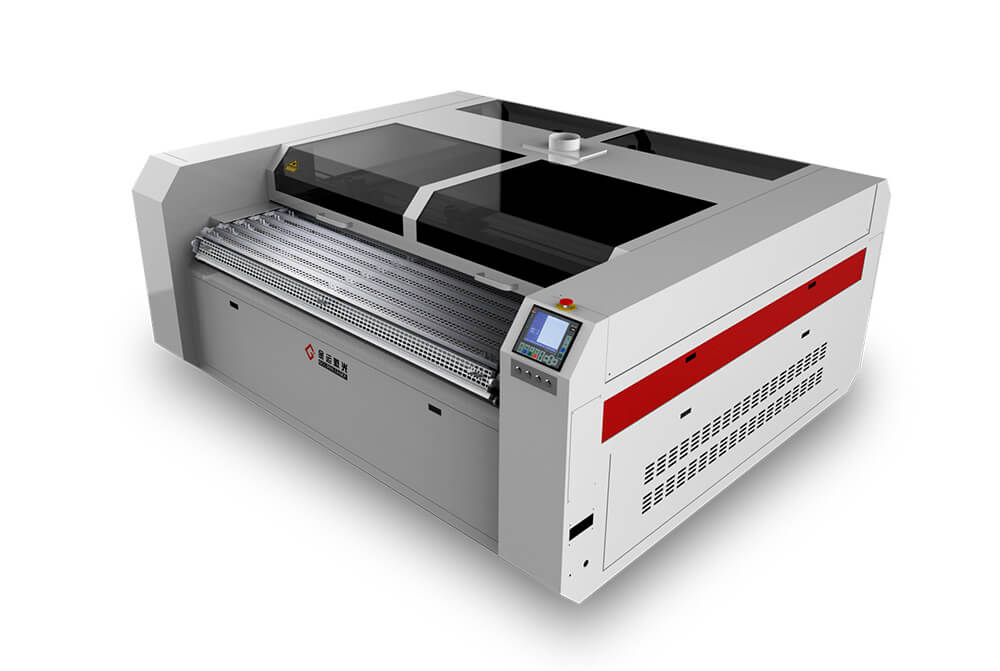

Technical specifications of the laser cutting machine
| Working area | 1600mm×1000mm / 62.9"×39.3" |
| Recognition mode | CCD camera recognition |
| Working table | Honeycomb conveyor working table |
| Laser power | 70W / 100W / 150W |
| Laser tube | CO2 glass laser tube / CO2 RF metal laser tube |
| Control system | Servo motor system |
| Cooling system | Constant temperature water chiller |
| Exhaust system | 1.1KW exhaust fan×2, 550W exhaust fan×1 |
| Power supply | 220V, 50HZ / 60HZ / single phase |
| Electrical standard | CE / FDA / CSA |
| Power consumption | 9KM |
| Software | GoldenCAM software |
| Space occupation (with auto-feeder) | 3210mm (L) × 2560mm (W) × 1400mm (H) (for reference only) |
| Other options | Auto feeder, red dot |
Applicable materials and industries of the cutting laser machine
• Process materials: twill, polyester fabric, spandex, leather, plastic, paper, wood, acrylic and other non-metal materials
• Application: apparel, photo frame, labels, etc.
