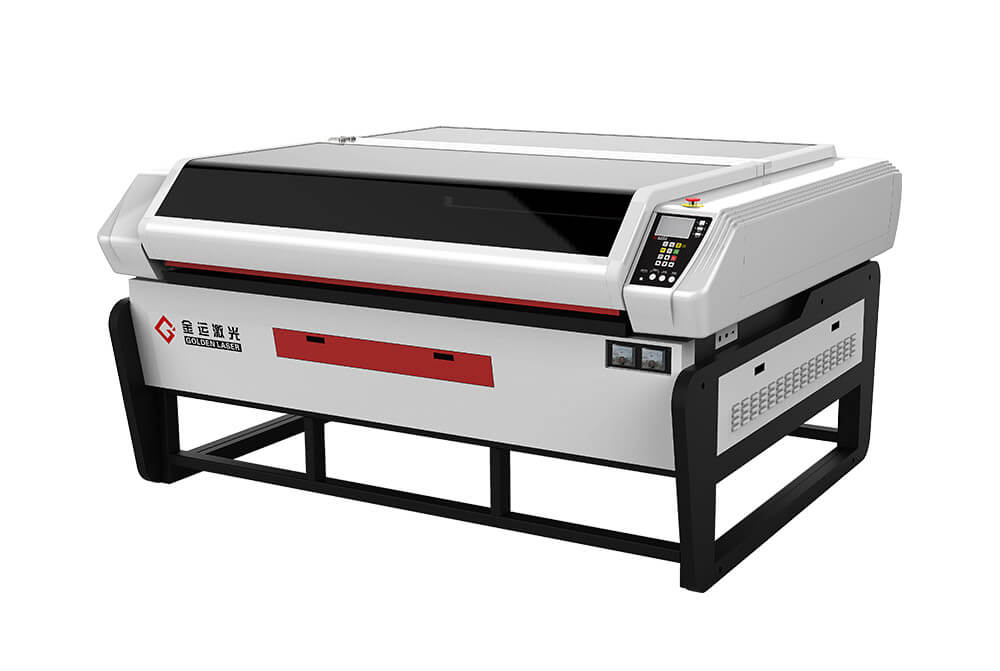

JG-10060SG / JG-13090SG

Laser Cutting and Engraving Machine for Nonmetal

Send email to us Download as PDF

The electric lifting worktable can intelligently adjust the height of the worktable for materials of different thicknesses.

Especially suitable for advertising and crafts industries, processing of different thickness materials such as wood, acrylic, veneer and EVA.

Zinc-iron alloy honeycomb worktable and knife strip panel worktable can be selected according to processing requirements.

Model No.	JG-10060SG	JG-13090SG
Working area	1000mm×600mm (39.3”×23.6”)	1300mm×900mm (51.1”×35.4”)
Working table	Zinc-iron alloy honeycomb worktable / Knife strip panel worktable (Electric lifting)
Laser type	CO2 DC glass laser tube
Laser power	80 watt ~ 150 watt
Motion system	Step motor
Working accuracy	±0.1mm
Cooling system	Constant temperature water chiller
Supported graphics formats	PLT, DXF, AI, BMP, DST, etc.
Power supply	AC220V±5% 50 / 60Hz
