Model No.: ZJJG(3D)-210200LD

Laser Cutting and Perforating Machine for Fabric Air Duct

Send email to us Download as PDF

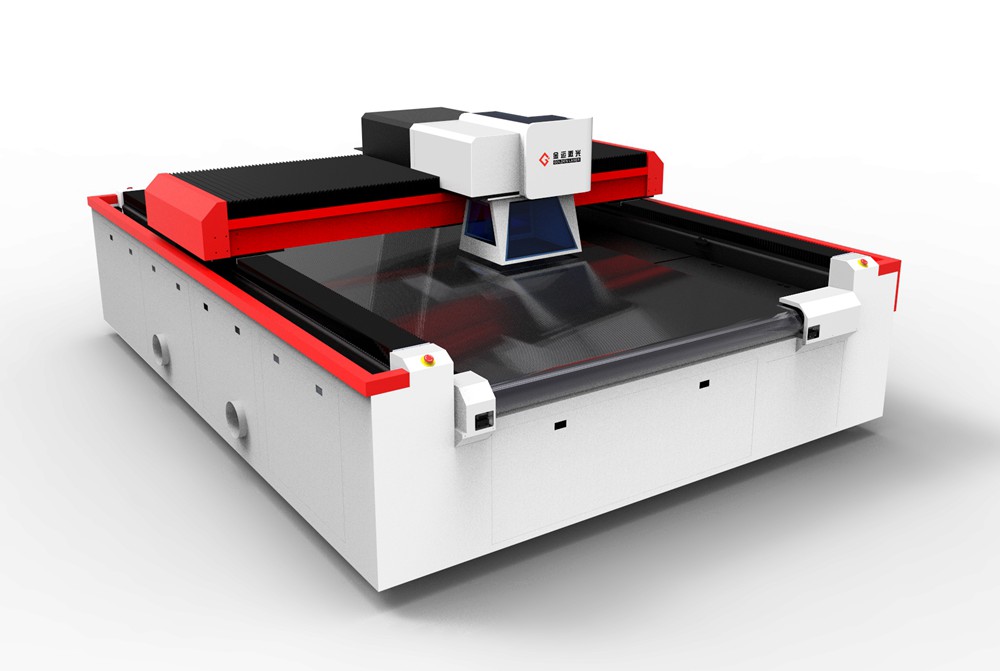

Laser Cutting Machine for Fabric Air Duct (Air Socks, SOXDUCT)

This laser cutting machine is a combination of large format X,Y axis laser cutting (trimming) and high speed Galvo laser perforating (laser cut holes).

Laser Solutions

Advantages of laser cutting for fabric air duct

Cutting the dispersion holes constantly matching the drawing

No tool wear - consistently high cutting quality

High speed cutting for plenty of holes within short time

No fabric distortion due to contactless processing

Automatic sealing of cut edges prevents fraying

Automated production process with conveyor and feeding systems

Technical specifications of the laser cutting machine

Laser source	CO2 RF metal laser tube
Laser power	150W / 300W / 600W
Working area (W×L)	2100mm×2000mm (82.6"×78.7")
Working table	Vacuum conveyor working table
Mechanical system	Servo motor, Gear & Rack driven
Power supply	AC220V±5% 50/60Hz
Graphic format supported	PLT, DXF, AI, BMP, DST
Options	Auto feeder
