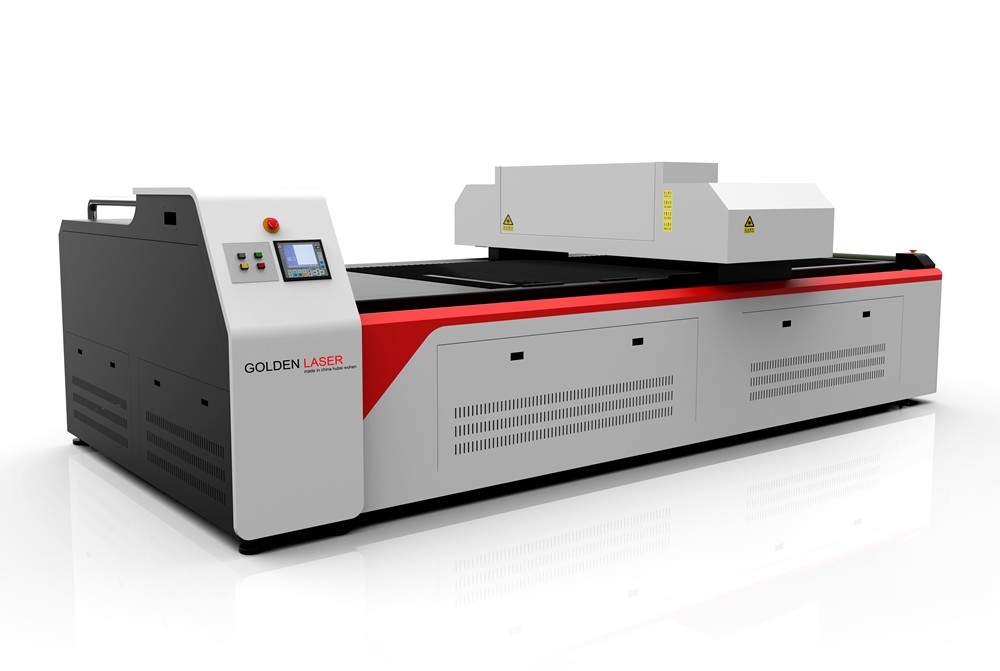

Model No.: JMCZJJG(3D)-130250DT

Galvo & Gantry Laser Engraving Cutting Machine for MDF Wood Acrylic

Send email to us Download as PDF

CO2 Laser Engraving Cutting Machine

This laser machine combines two laser functions, the X-Y axis gantry system for large area cutting and the galvanometer system for engraving. Both systems share a single laser tube.

Galvo & Gantry Integration

Large format cutting

High speed engraving / marking

For thick non-metal materials

Features of the laser engraving cutting machine

The CO2 laser machine is mainly used for engraving and cutting processes of large-format thick materials.

Equipped with high-speed galvanometer system, the engraving and marking efficiency is more than 100 times that of the X-Y axis structure laser.

The machine is also equipped with X-Y axis laser cutting head to achieve a large area thick material cutting.

The gear and rack driven controls the high precision of engraving and cutting from the motion system.

Pneumatic omni-directional wheel table for easy loading and unloading of large format and heavy materials.

Technical specifications of the laser cutting engraving machine

Laser type	CO2 RF metal laser tube
Laser power	150 watts, 300 watts, 600 watts
Working area	1300mm×2500mm (51.1” ×98.4”), 2100mm×3100mm (82.6” ×122”)
Galvo scan area	450mm×450mm (17.7” ×17.7”)
Working table	Strip panel working table
Power supply	AC220V±5% 50 / 60Hz
Graphic formats supported	AI, BMP, PLT, DXF, DST, etc.
